Ever since Michelin patented the radial tyre architecture in 1946—fundamentally changing vehicle dynamics by aligning steel cord plies at 90 degrees to the direction of travel—the modern tyre has evolved into an engineering marvel.
Engineers now precisely control this composite of polymers, woven steel, and state-of-the-art thermal processing.

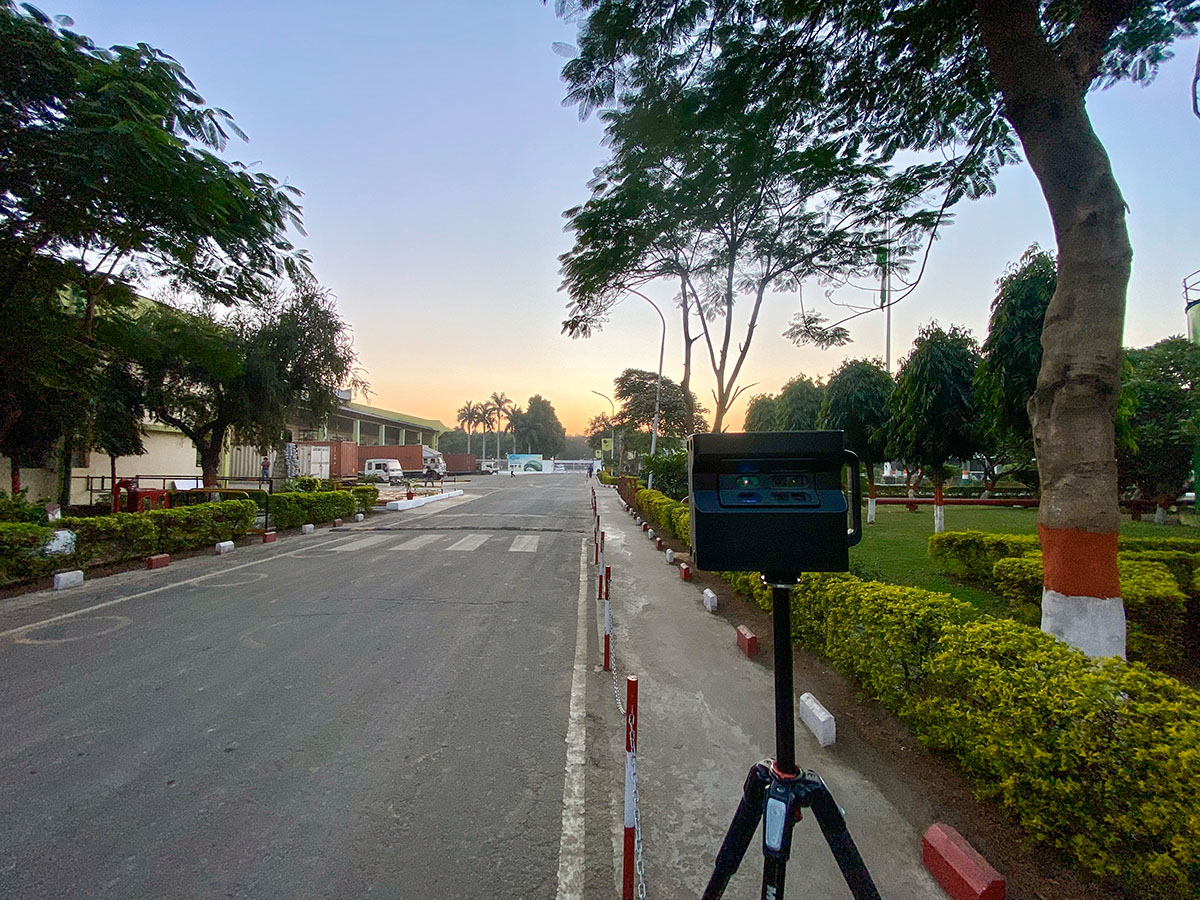

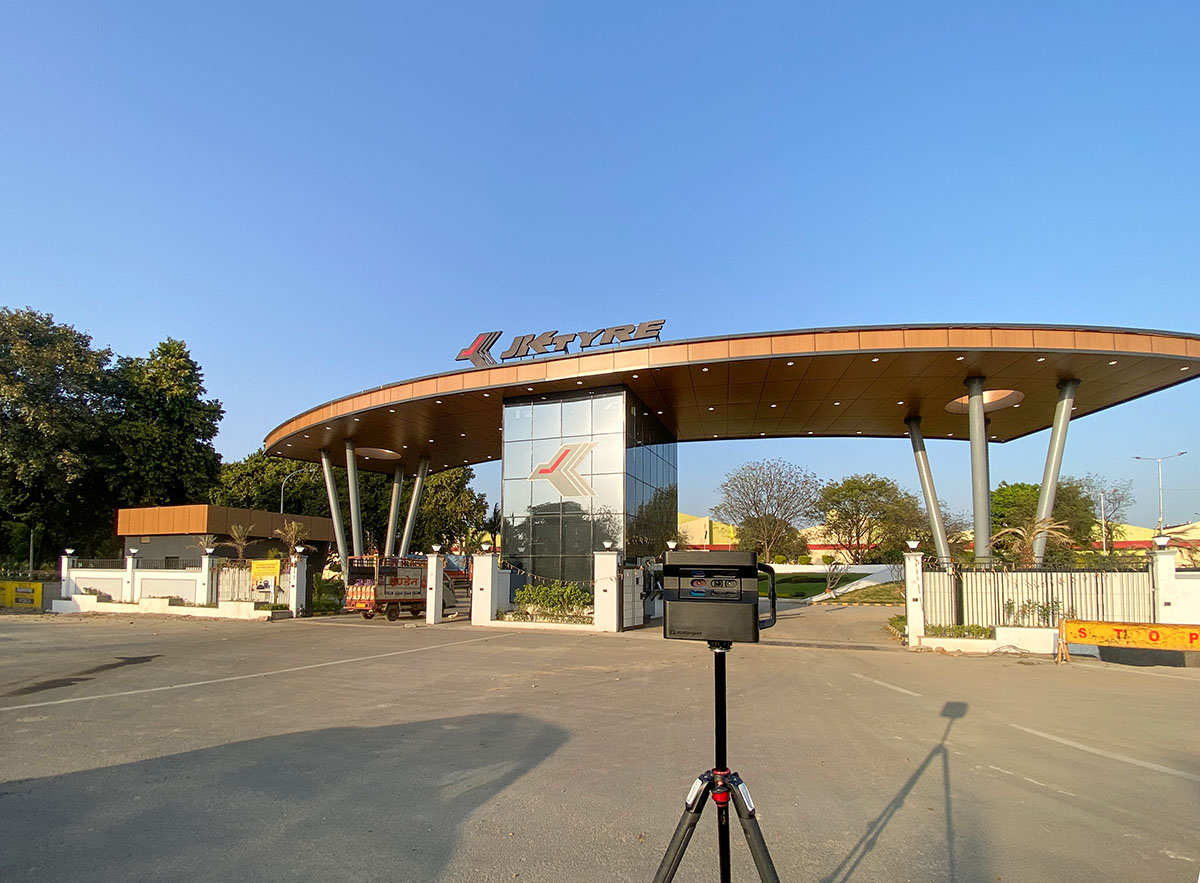

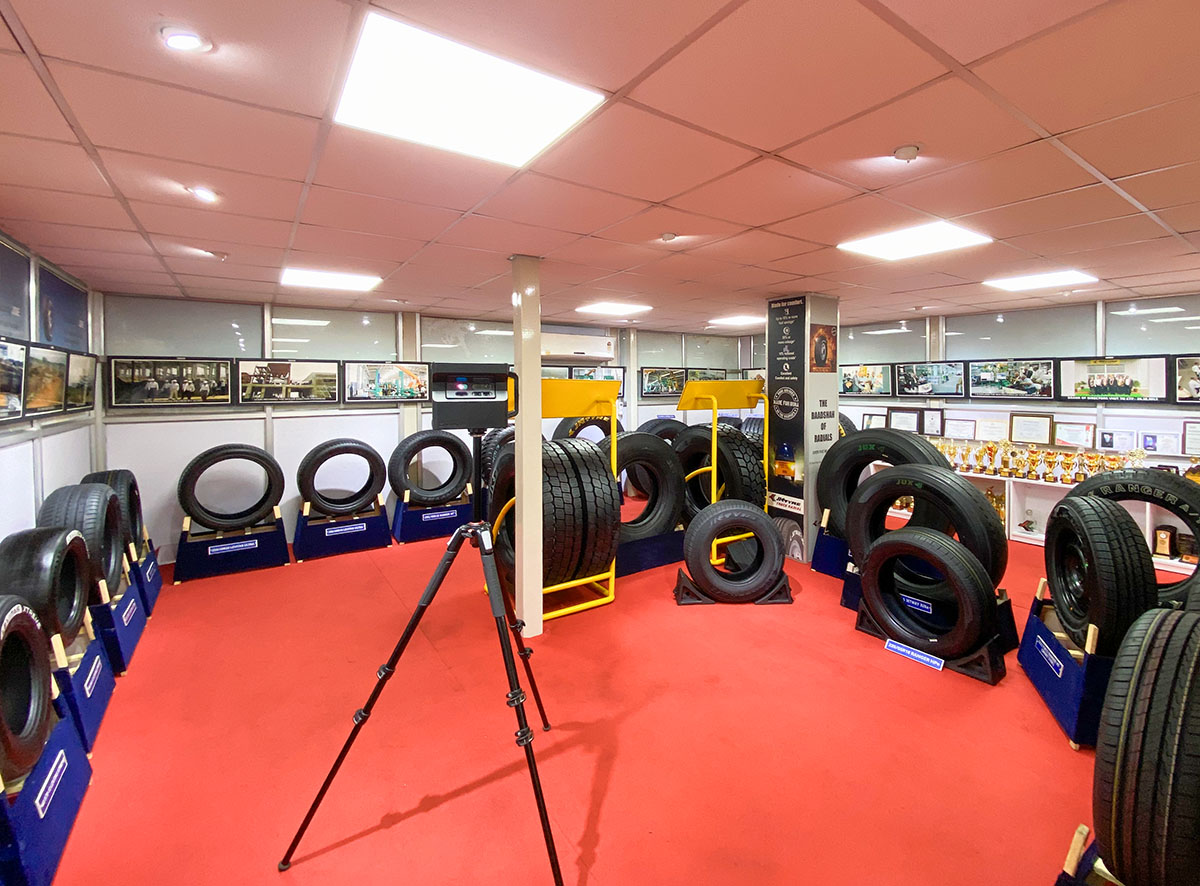

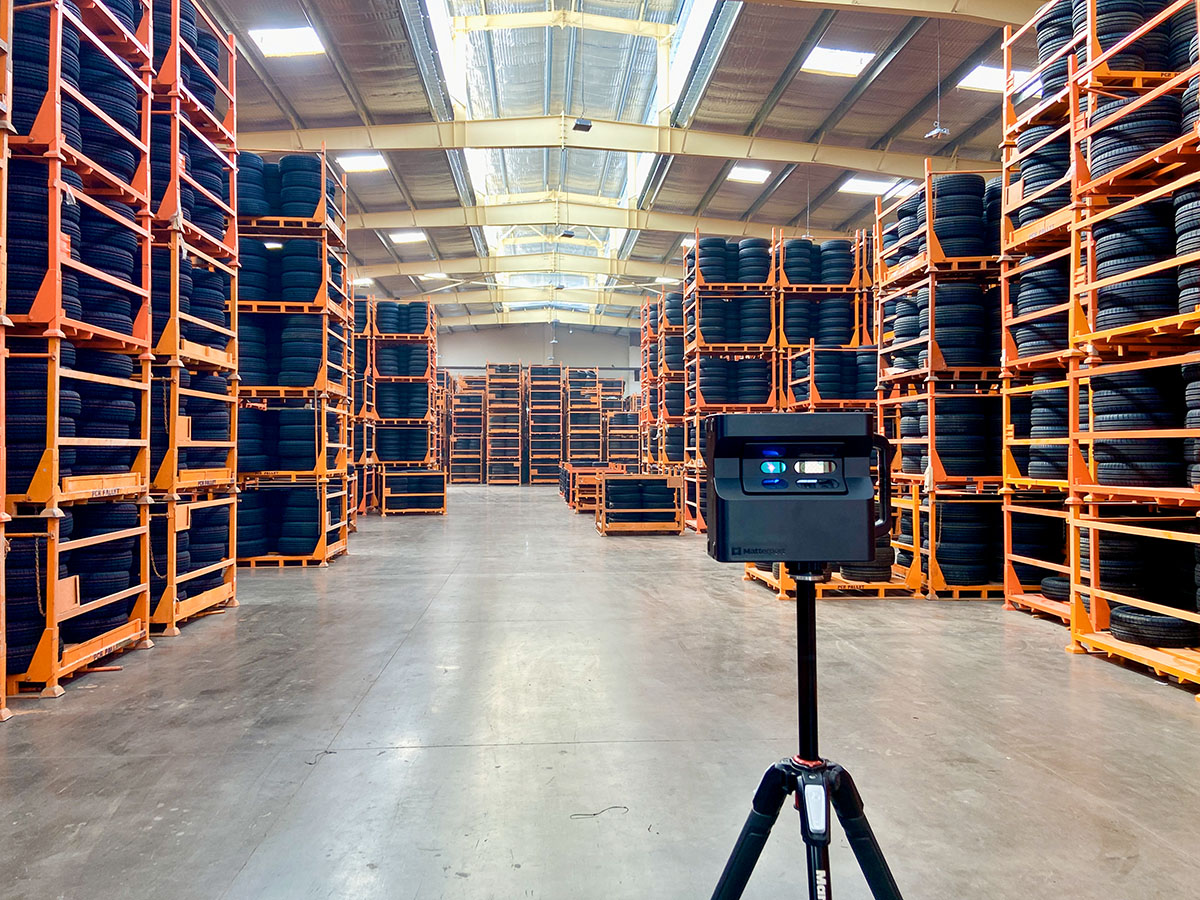

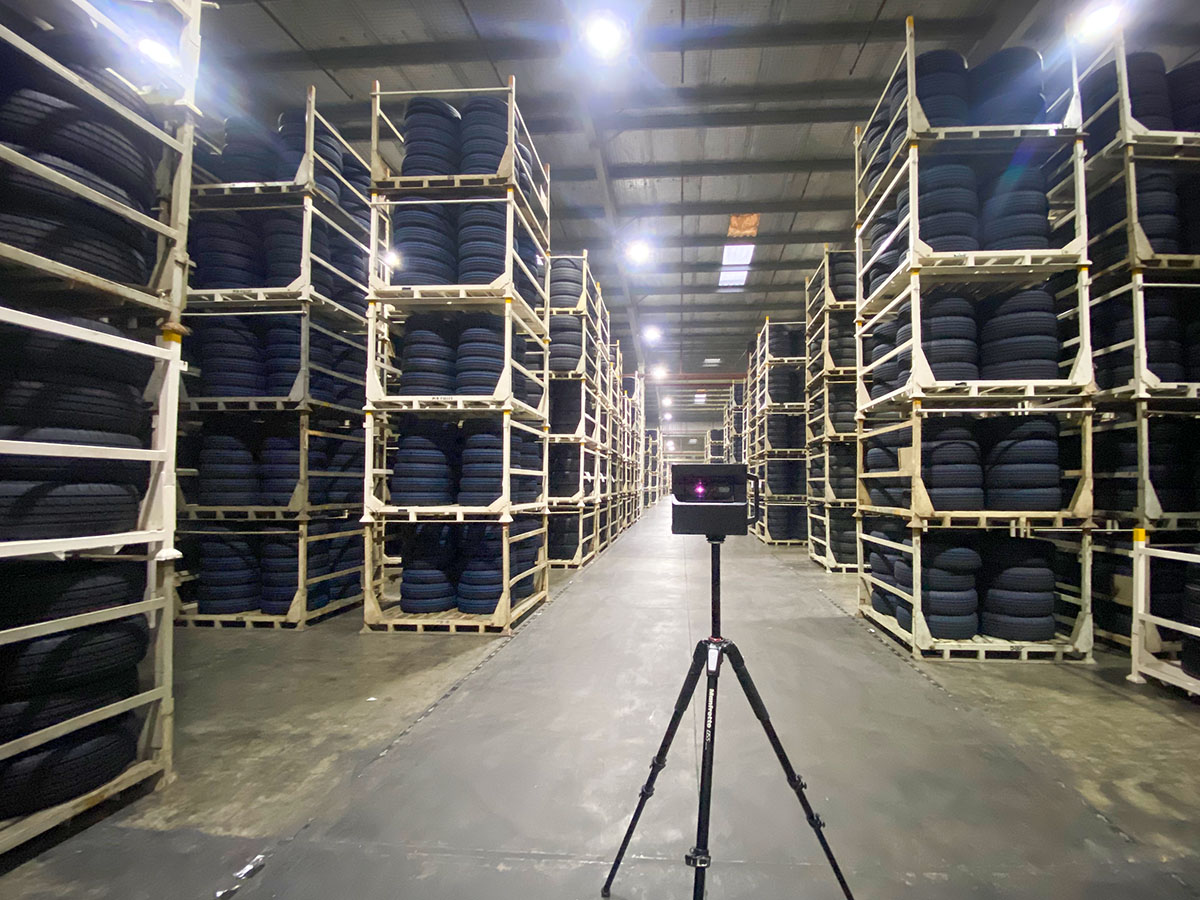

To document this environment, JK Tyre commissioned us to create high-fidelity 3D digital twins of two critical hubs in India: the 500,000-square-foot facility in Gwalior, and the larger Chennai plant housing both the Passenger Car Radial (PCR) and Truck and Bus Radial (TBR) divisions.
Digitising over a million square feet of active space requires far more than just pressing a button. It demands navigating sweltering heat, managing multi-storey steel climbs, processing immense raw data, and coordinating directly with a dedicated workforce operating under constant motion.
Documentation Notice: Due to Non-Disclosure Agreements (NDA) protecting the operational security of these manufacturing facilities, the interactive 3D virtual tours cannot be publicly displayed. All spatial imagery and visual documentation within this article remain the copyrighted property of Adostrophe.
Executive Summary
- Scale Documented: Over 1 million sq ft captured across the highly advanced Gwalior and Chennai facilities.
- The Human Element: Navigating thermal extremes, active machinery, and a highly cooperative workforce operating across four shift cycles.
- Technical Logistics: Managing strict platform limitations, overcoming CNN AI failures in post-production, and enforcing strict 5S preparation protocols.
Enterprise Applications of the Digital Twin
In modern heavy manufacturing, digital twins serve sophisticated operational functions beyond visual representation:

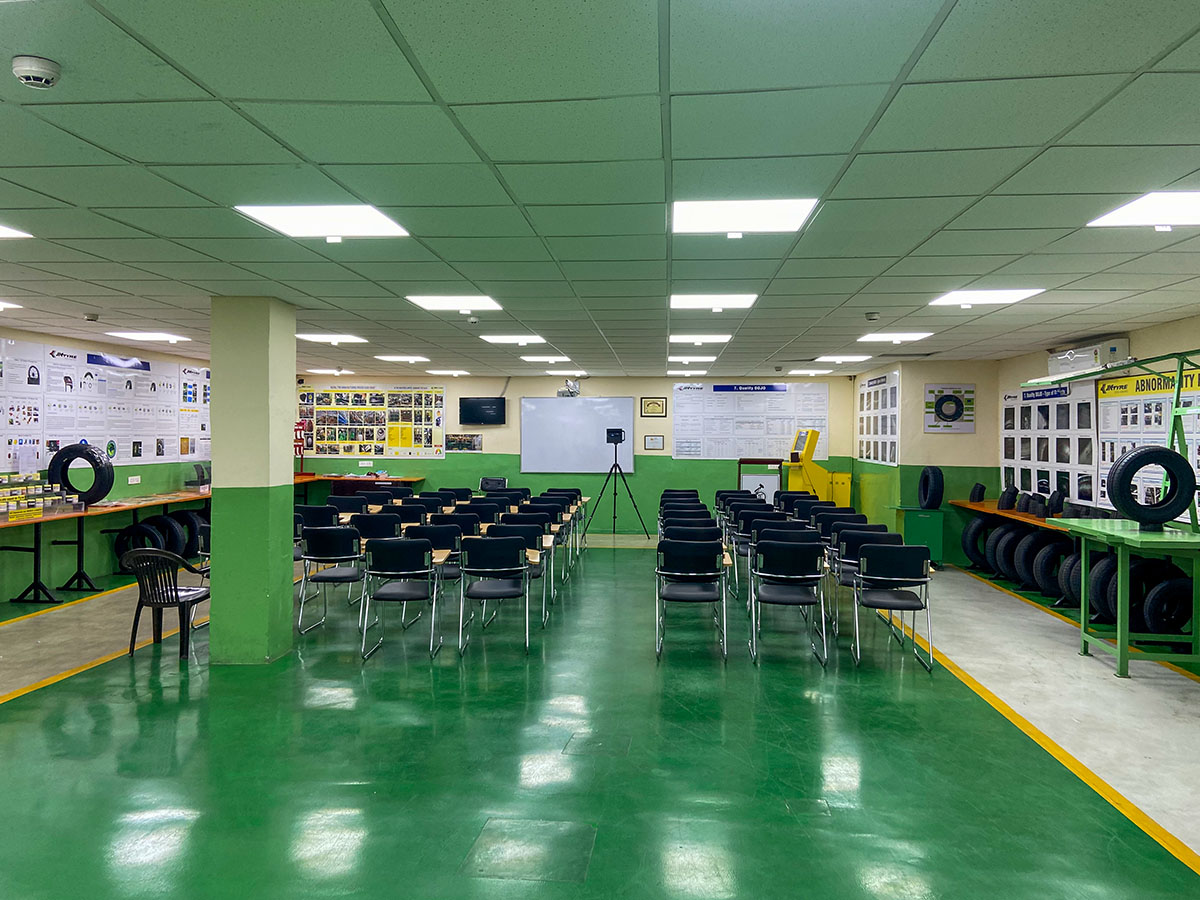

- Safety Training: Extending rigorous safety protocols into a virtual environment where personnel acclimate to the floor remotely.
- Remote Auditing: Enabling global stakeholders to inspect infrastructure and verify compliance without the logistical overhead of physical travel.
- Spatial Planning: Facilitating precise measurement of machinery clearances to plan future structural installations.
- Systems Integration: Serving as a visual mesh for real-time IoT data, linking SCADA telemetry directly to spatial coordinates.
The Physics of Spatial Capture: Decoding the "Echo"
To understand the complexity of scanning a factory, we must look at how the Matterport Pro2 actually sees the world.
Consider a microbat flying through a pitch-black cave. The bat emits an ultrasonic squeak and listens for the echo. Based on the time the sound takes to bounce back, the bat's brain builds a 3D mental map of the cave walls. The concept remains identical for a spatial camera, but the medium changes: instead of sound, the camera uses structured infrared light.
The hardware projects an invisible grid, and sensors calculate the "time-of-flight" for that light to return. But a massive catch exists: this technology assumes the cave remains completely static.
In an active factory, if a forklift drives past during a rotation, the infrared "echo" bounces off the vehicle instead of the wall behind it. The software's optimization algorithm perceives this not as a moving truck, but as a structural wall that just magically shifted three feet forward. The spatial alignment immediately breaks.
Phase 1: The RMS and the Banbury Stairs
Manufacturing begins in the Raw Material Section (RMS). The central infrastructure here is the Banbury mixer, a multi-storey marvel of modern mechanical engineering that compresses and folds material under high force.
Capturing this zone demands intense physical effort. It requires hauling the camera and positioning the tripod precariously on the multi-storey steel grating of the Banbury stairs. Tight angles present only half the challenge; constant structural vibration hums through the steel beneath our feet from the massive machinery, requiring perfect timing to maintain a still exposure.
Phase 2: TBMs, Performance Art, and the Buttermilk Break

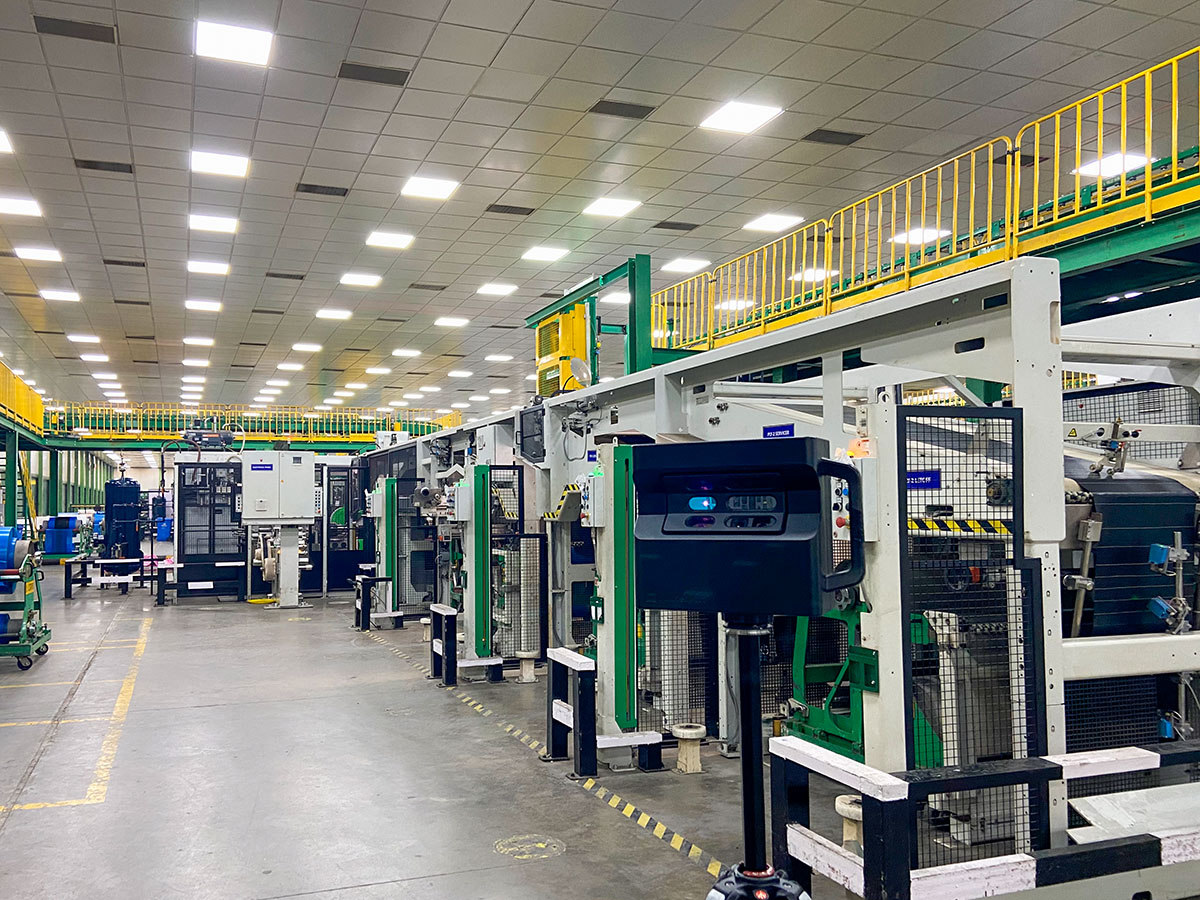

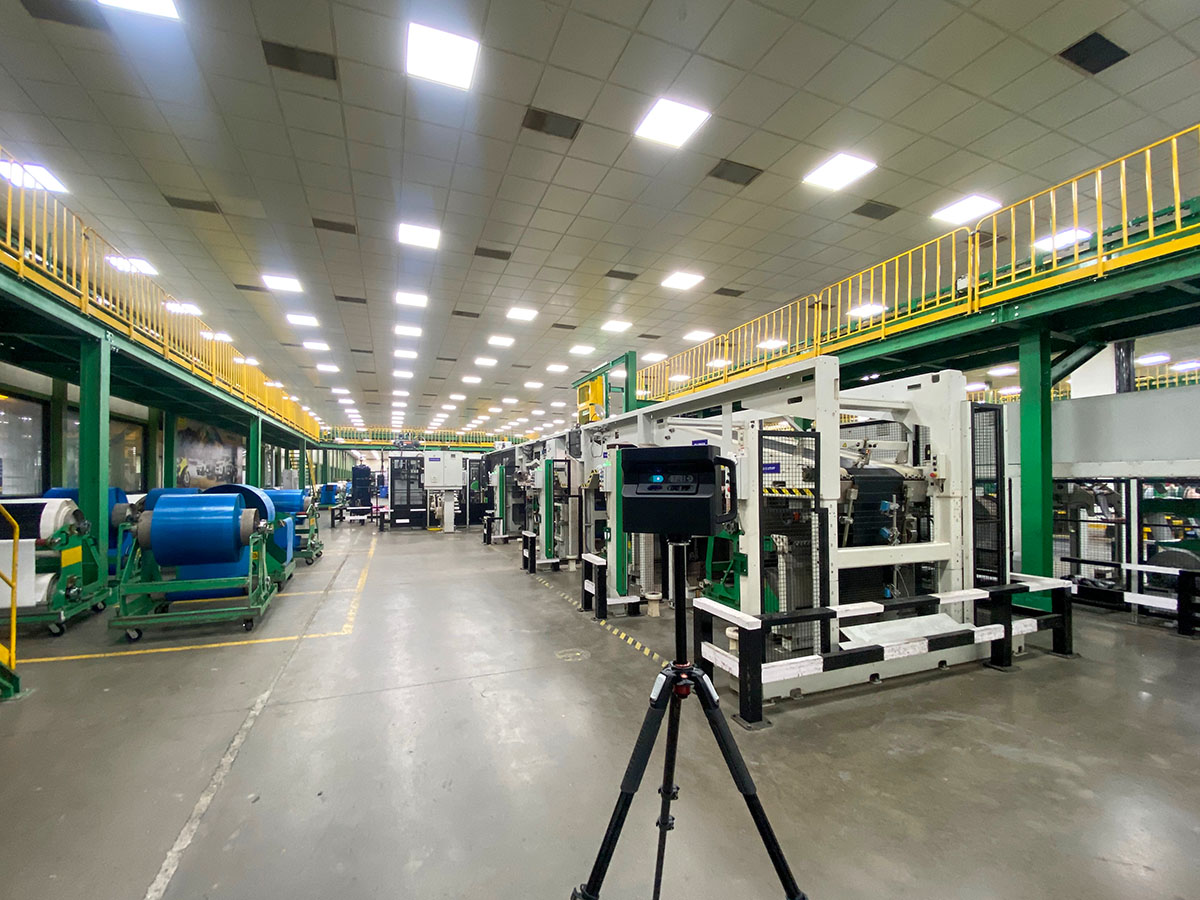

Post-mixing, the compound routes to extruders for shaping before reaching the Tyre Building Machine (TBM).
This environment operates on a relentless schedule—three continuous 8-hour shifts plus a general shift. The workforce, a mix of highly skilled local experts and staff from other states, wears branded uniforms and safety boots.
They also bring an incredible humanity to the floor. On one of the older TBM lines, two young operators kept exchanging glances. One of them, it turned out, had spent the last hour putting on an elaborate, heroic performance for the rotating camera lens. When his shift-mate finally asked me if he got "covered" in the shot, I broke the news that the system automatically blurs human faces for privacy. The entire line erupted in laughter.
That humanity extends to the facility's culture. During the peak of Chennai's summer, the sweltering heat on the floor becomes intense. A cart distributing ice-cold, spiced and salted buttermilk briefly paused operations—free for everyone. For a few minutes, hierarchy disappeared. Managers, operators, and our team stood together, drinking buttermilk to survive the heat, before the line resumed.
Phase 3: Vulcanisation and Sweltering Heat

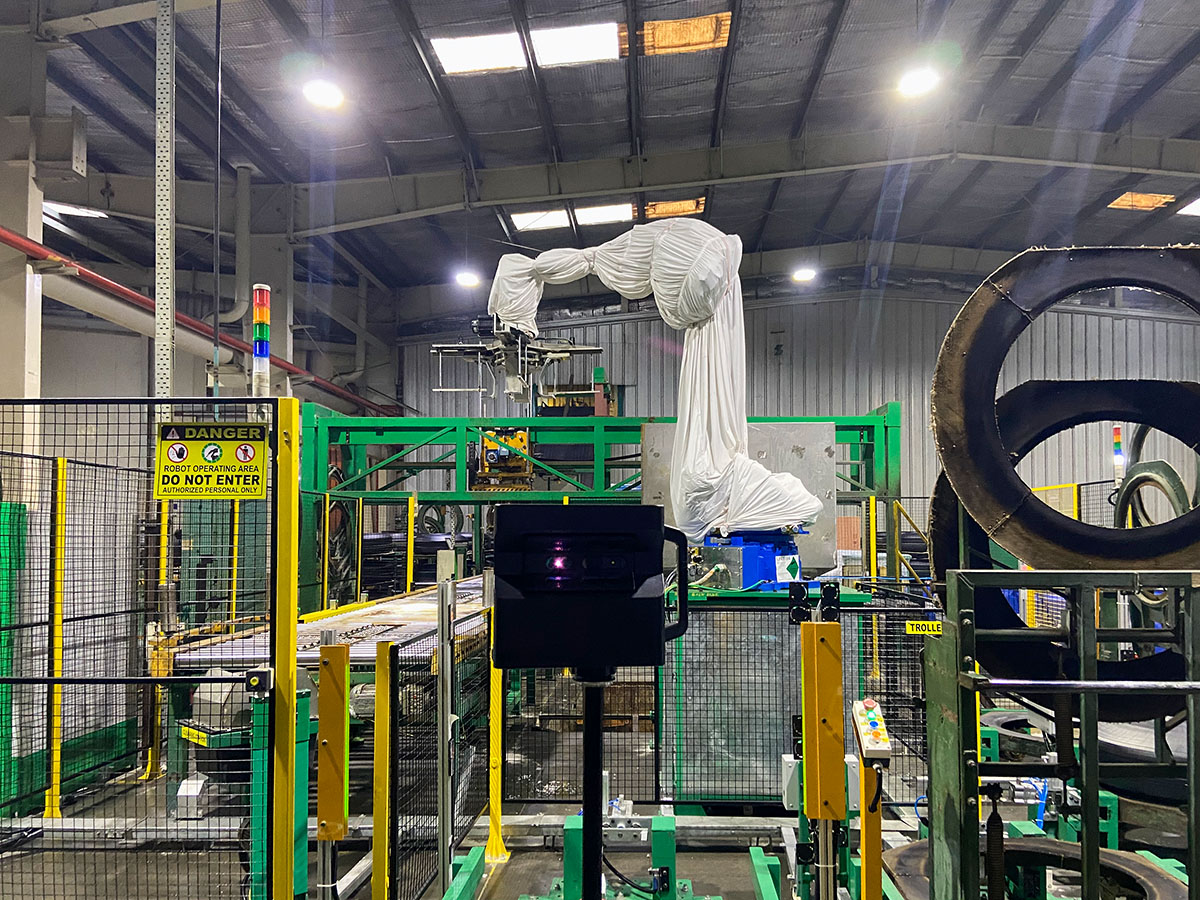

The curing phase subjects the green tyre to extreme heat and pressure within a mould. This area tests the endurance of both human and machine.
Capturing the densely packed infrastructure of the curing lanes forces the technician to navigate narrow trenches surrounded by intense thermal output. Operationally, capturing data in this zone requires manually thermal-cycling the equipment—letting the scanner cool down periodically so the internal hardware avoids failing from the ambient heat.
The Dynamic Environment: Splitting and Merging
Constant movement, shift changes, and massive scale prevent us from scanning a million square feet in one continuous model.
The Matterport platform enforces a hard architectural limit of roughly 2,000 scan points per model. Pushing beyond this degrades the user experience and breaks the alignment algorithm. To adapt to this dynamic environment, we strategically segment a single manufacturing plant into 15 to 30 distinct models.
We capture overlapping zones and manually merge them post-capture to create a single, unified walkthrough. Furthermore, these massive, data-heavy models occupy significant hosting weight, with large segments consuming up to 5 individual spaces on an enterprise hosting plan.
The Reality of Post-Production: Weeks, Not Days
The physical exertion on the factory floor represents only half the battle. Delivering a flawless digital twin at this scale requires immense post-production resources. Editing an enterprise facility takes several weeks.
Our team spends hundreds of hours manually realigning fragmented scans and repairing complex structural meshes where the infrared data failed to bounce back cleanly from reflective steel. However, the most labor-intensive phase involves spatial data compliance and privacy.
Convolutional Neural Networks and the "Clone" Effect
Automated privacy blurring relies on deep learning and Convolutional Neural Networks (CNNs) trained to detect human silhouettes. Unfortunately, engineers optimize these AI models for standard environments like offices or residential real estate. When a CNN processes a thermal curing lane or an operator wearing heavy industrial PPE next to a complex extruder, its object-detection confidence threshold plummets.
Furthermore, strict enterprise compliance mandates that we blur the entire human body, not just the face. This introduces a unique spatial anomaly: because the camera captures the environment through mechanical rotation, a worker walking across the floor in the same direction as the lens will be captured multiple times. A single person easily appears three or four times in the exact same 360-degree panorama.
When the automated AI fails to recognize these distorted, cloned figures in a heavy manufacturing setting, our team must manually paint full-body privacy blurs over every instance across thousands of panoramas. Ensuring every worker remains rigorously anonymised across dozens of overlapping scan points forms a massive, highly manual undertaking.
The Blueprint: Preparation and 5S Methodology
Because post-production remains mathematically rigid, the facility must be fully prepared before the capture team arrives.
There is no hiding a mess in 3D. If floor managers fail to properly Sort, Set, and Shine the environment, it directly corrupts the baseline spatial data. We cannot digitally erase clutter or unorganized material staging. Poor 5S preparation does not just look unprofessional—it derails the entire spatial mapping schedule, forces brutal project delays, and frequently mandates entirely new, costly physical rescans.
Scanning at this scale requires viewing the facility as an integrated system. Uncompromising operational discipline on the floor provides the only viable path to executing a flawless digital twin.
Enterprise Deployment Considerations
Whether managing a state-of-the-art vulcanisation plant or coordinating a large-scale logistics hub, enterprise-scale spatial digitisation requires immense physical effort, technical precision, and weeks of dedicated editing. Adostrophe provides these technical capture services to showcase your world-class environments.
Schedule a Technical ConsultationFrequently Asked Questions
How should plant managers prepare a facility for a 3D scan?
Strict adherence to 5S methodology is required before the capture team arrives. A digital twin captures reality exactly as it is; poor floor preparation corrupts the baseline spatial data, forces project delays, and often requires costly physical rescans.
How long does post-production editing take for a large facility?
Editing an industrial plant takes several weeks. It involves manual realignment of fragmented models, repairing complex structural meshes, and applying full-body privacy blurs across thousands of individual 360-degree scan points where automated AI detection fails.
Is a halt in manufacturing operations required during the scan?
No. Modern plants operating on continuous shift cycles do not need to halt operations. We seamlessly coordinate with floor managers to orchestrate temporary pauses in Material Handling Equipment (MHE) traffic within active scanning zones.
How is floor staff briefed on the scanning procedure?
Facility managers typically brief their teams that our presence focuses purely on structural mapping, not productivity monitoring. Once briefed, dedicated staff frequently coordinate their movements seamlessly with our capture paths.
